C8 Carbon Wheel Spacer Kit

***Now shipping - 1-2 week lead time***

Without a doubt the Carbon Revolutions wheels are the most badass wheels you can put on a C8 Widebody.

The only issue is fitment, due to to various regulations for stone throw and water egress the offsets from the factory leave LOTS to be desired.

Fix all that with this kit.

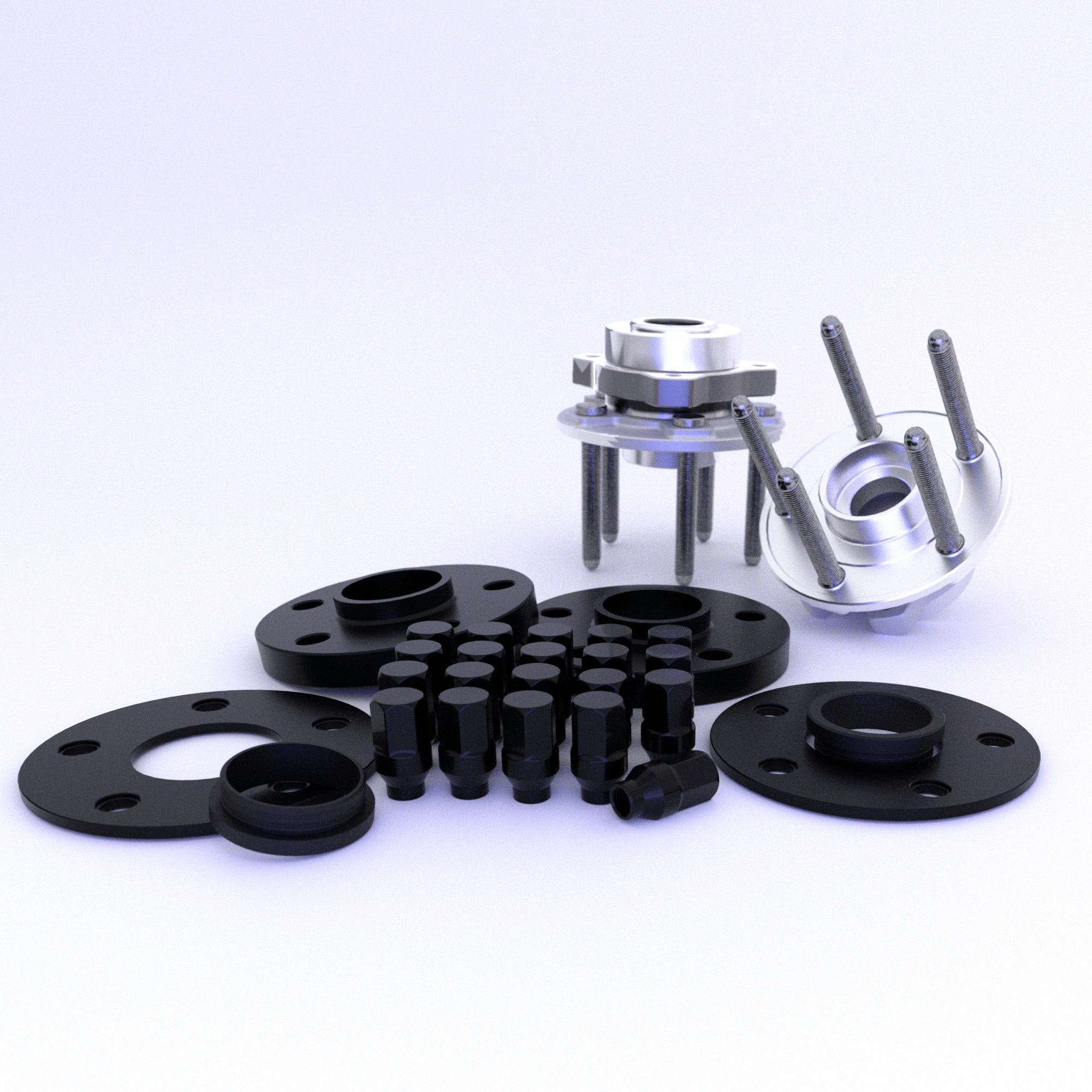

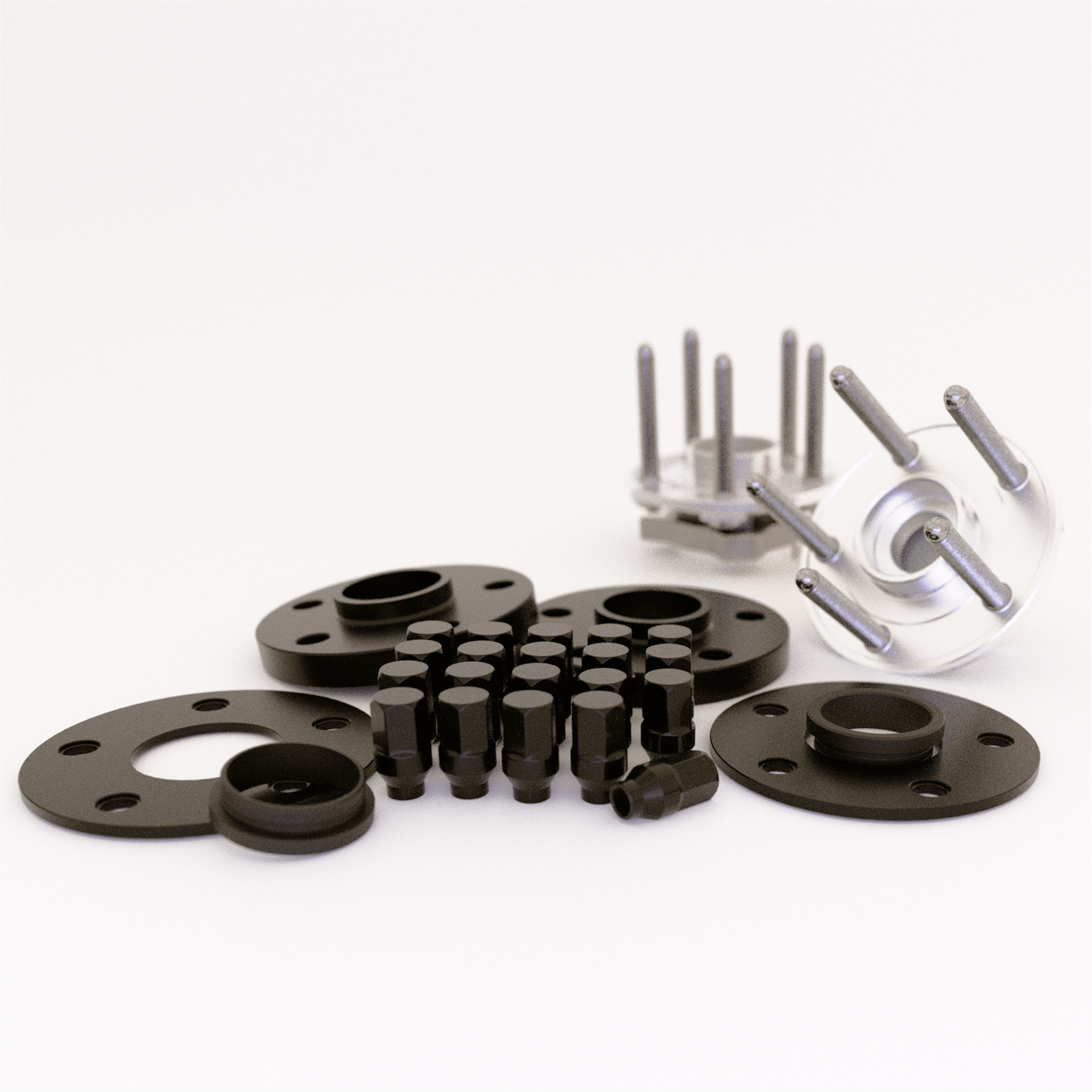

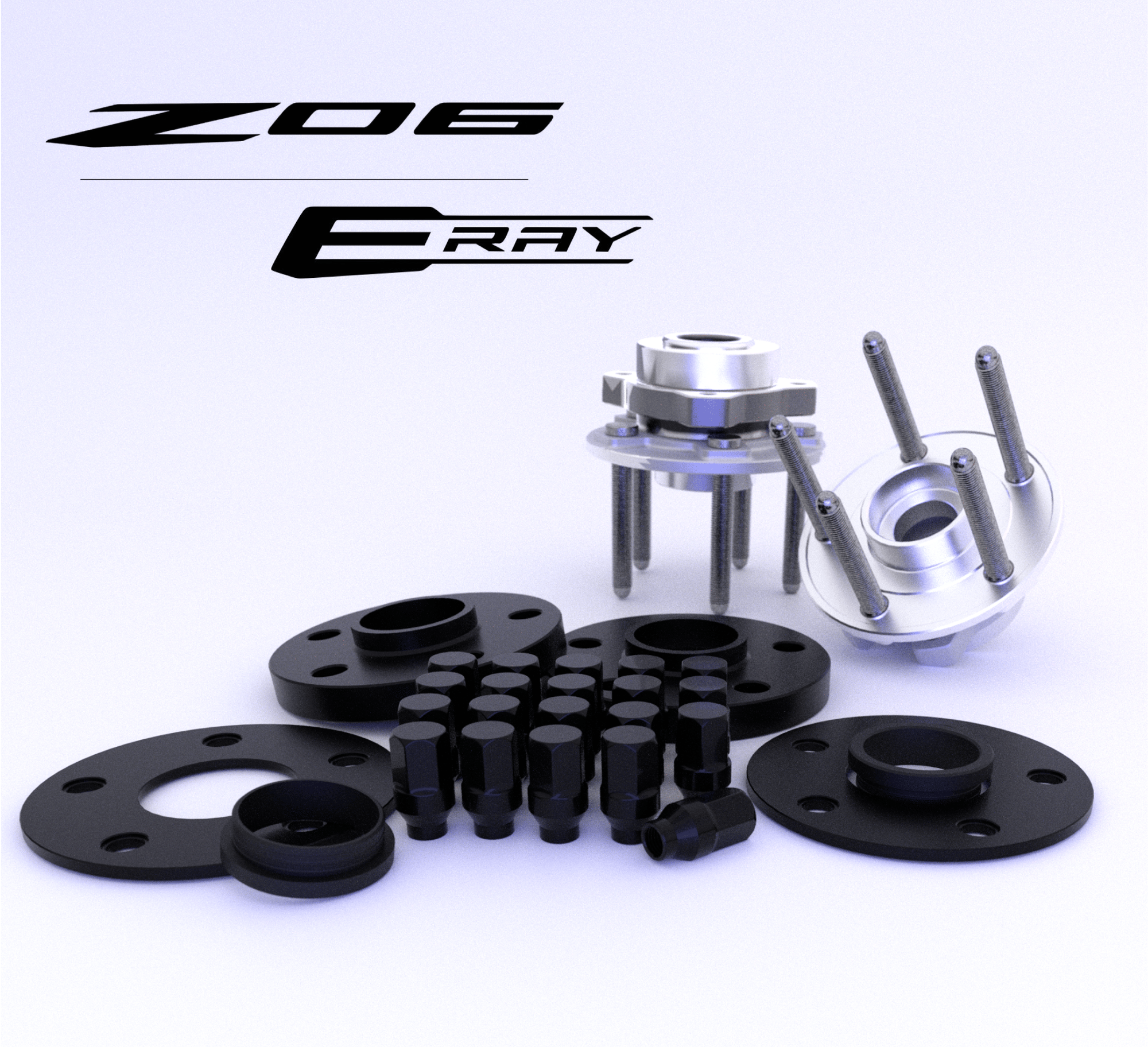

The full kit consists of a set of OE rear hubs with longer studs pressed in, a slip on spacer for the front and rear, a hub centric spacer for the front and 20 titanium lug nuts.

The studs are made in the USA. Not a single corner will be cut on the manufacture of the studs.

SPECIFICATIONS

Spacers:
Material: 7075 AL
20mm rear thickness, incl hub ring
7mm front thickness

Front hub ring extension:
Material PA12 Nylon, CNC cut, annealed and sealed
8mm extension of hub ring, friction fit and bound via high temp adhesive (removable)

Lug nuts:
6AL-4V Titanium CNC
Rolled threads
black PVD coating, polished available upon request)

...

OPTIONS:

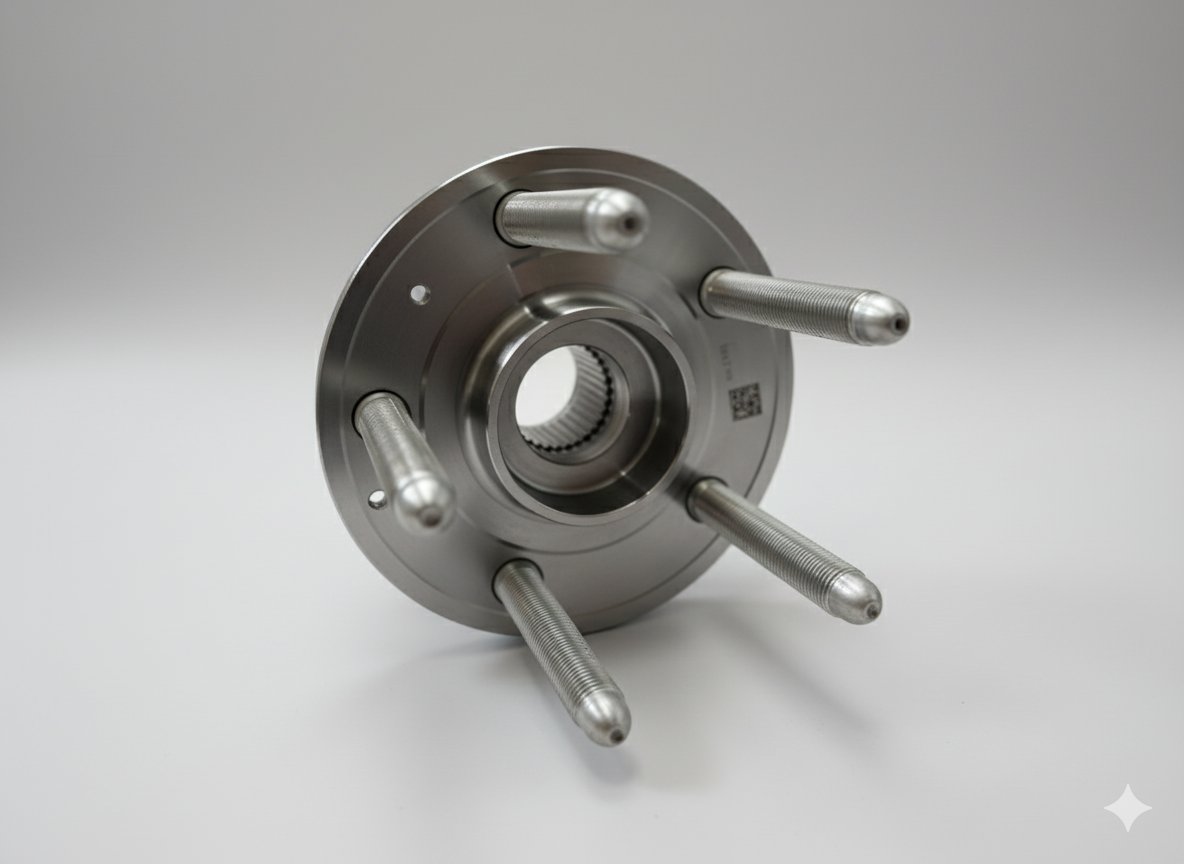

- Full kit (includes new OEM hubs) - 2x new oe hubs with longer ARP pressed in studs, front and rear spacers & black Ti lug nuts

- Rear kit (includes new OEM hubs) - 2x new oe hubs with longer pressed in studs, rear spacer, *no lugs

- DIY Full kit (without OEM hubs) - longer studs (you press into your hubs), front and rear spacers & black Ti lug nuts

- DIY Rear kit (without OEM hubs) - longer studs, rear slip on spacer, no lugs (you press into your hubs)

- Studs only (you press into your hubs)

_________________

***ALL KITS INCLUDE NEW OEM HUB BOLTS & AXLE NUTS***
4x Hub bolts 11603875
2x Axle nut 11612295
